數控路燈桿電門切割機，型號：300/2500
應用
It is suitable for conical, octagonal light pole door CNC cutting, Also it can cut round pipe. The cutting shape can be circle, square, rectangle, elliptic type etc and any which can be draw designed by computer.
The cutting source is automatic plasma. So the cutting speed will be much fast, and cutting edge quality is better then flame cutting.
Main parameter:
| No. | Item | Parameter |
| 1 | 切割長度 | 2500mm |
| 2 | 小桿子直徑 | 58 |
| 3 | 桿子直徑 | 300， 可以根據用戶要求定制 |
| 4 | 等離子電源 | 美國海寶， POWERMAX65 |
| 5 | 質量切割厚度 | MAX.16mm,按照等離子配置要求， |
| 6 | 邊緣切割厚度 | 25mm按照等離子配置要求， |
| 7 | 切割速度 | 一般一個電門切割時間為30~40秒 |
| 8 | 電機 | Servo motor/Chinese， 伺服電機 |
| 9 | 功率 | 1.5kw, 1500rmp |
| 10 | 數控系統(tǒng) | ADTECH HC4300 |
| 11 | 控制軸 | 2 axis, X,Z， 2軸數控，X,Z |
| 12 | 等離子切割槍 | 1 set |
| 13 | 弧壓調高裝置 | Portable CNC Plasma Torch Controller, XPTHC-Portable300 |
| 14 | 軟件 | 1, Made in China |
| 15 | 環(huán)境溫度 | 0-45℃ |
| 16 | 濕度 | <90%, no condensation |
| 17 | Surroundings | Ventilation, no big shake |
| 18 | 輸入電壓 |
Single phase,220V, 50HZ Three phases, 380V, 50HZ |

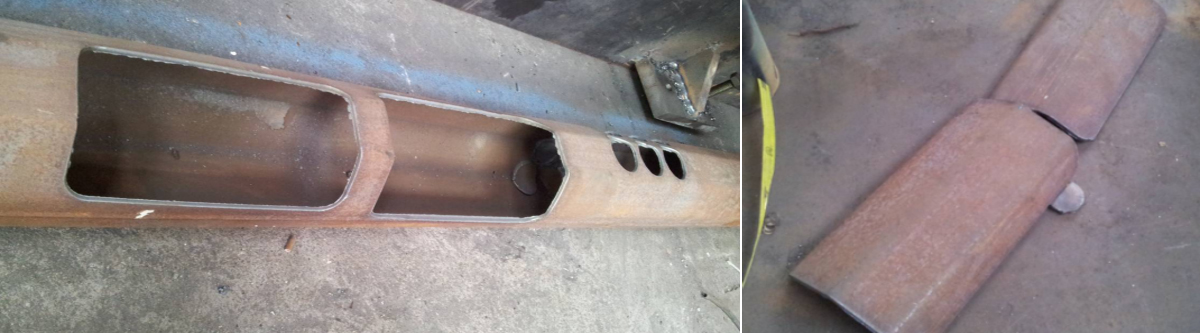

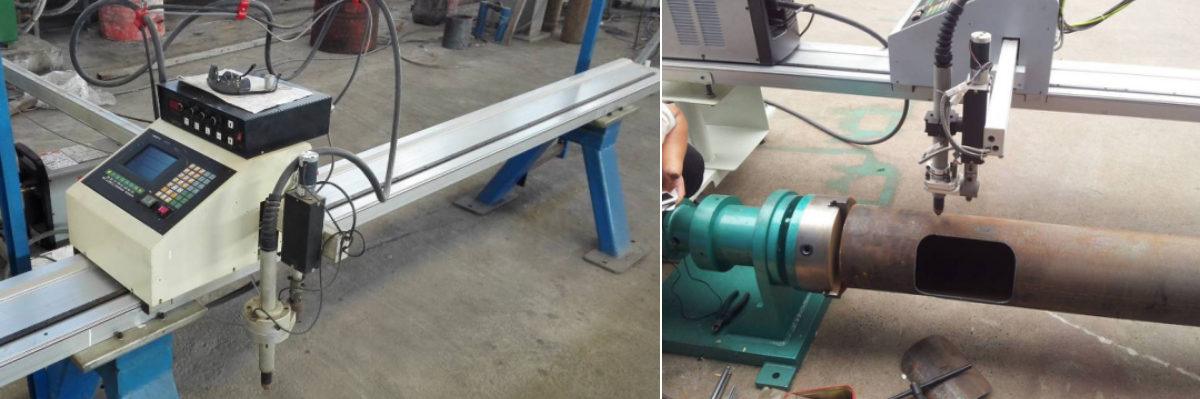

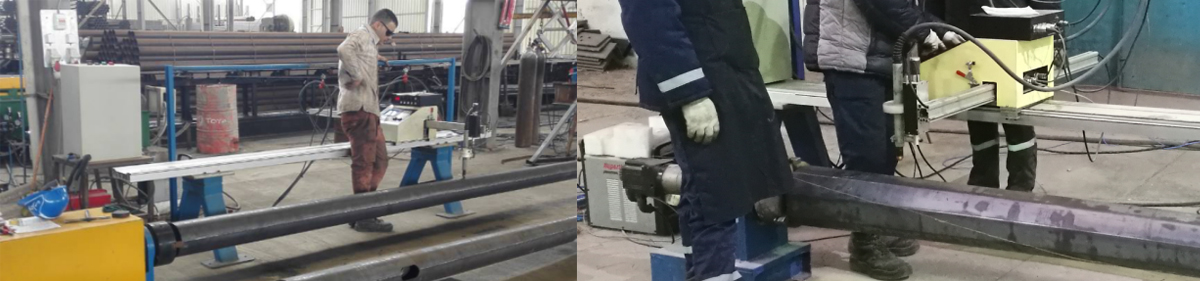

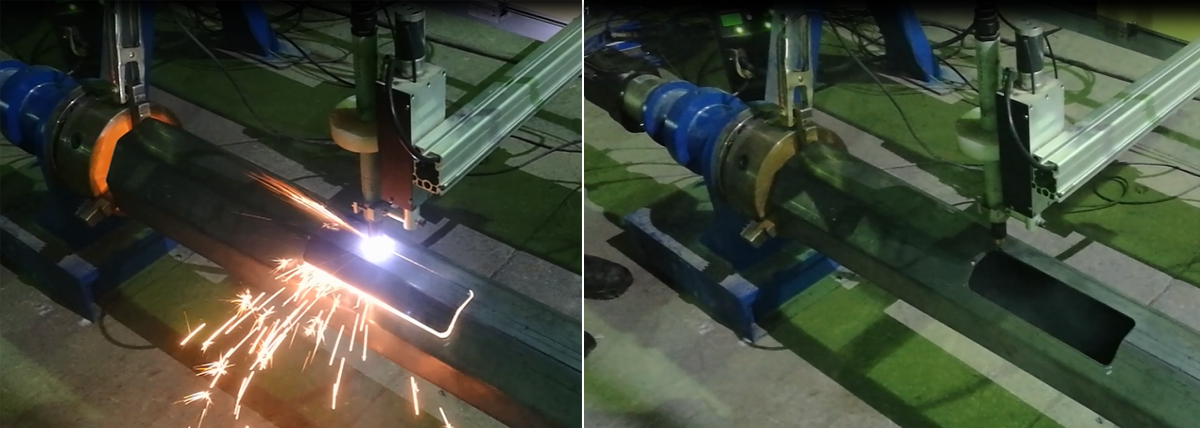

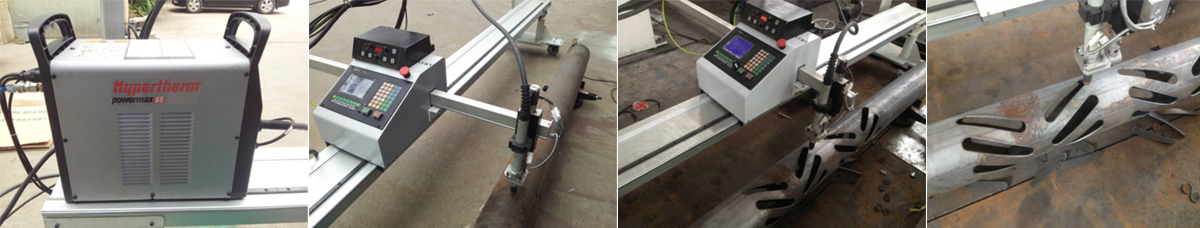

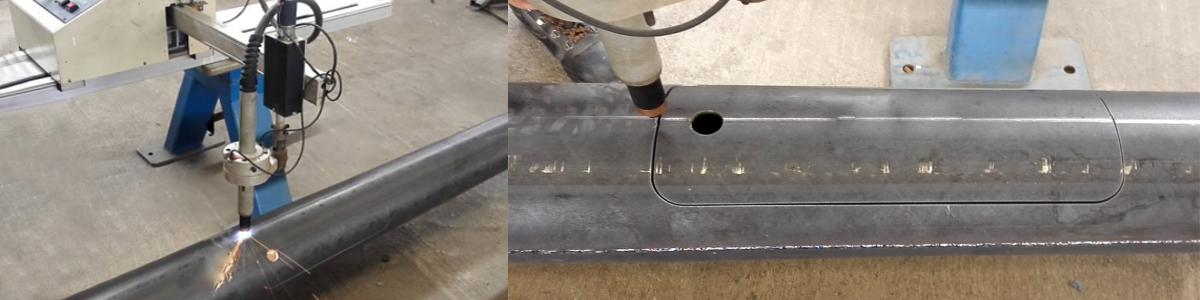

相關圖片
